SW7203

NVDC Buck-Boost Charge-Discharge Controller

SW7203 Features

* High-efficiency Buck-boost Charger

* Support buck-boost charging of 1 to 4 cells battery

* Support 3V-19.2V charging target voltage setting

* Support 100W input power

* Support 4V-24V input voltage

* Support I2C programming to control input/battery c

SW7203 General Description

SW7203 is a high-efficiency synchronous 4-transistor bidirectional buck-boost chargedischarge controller that supports the charge-discharge management of 1-4 cells and NVDC. It can provide up to 100W output power and support multiple input and output detection and path drive. It can form a simple a.

SW7203 Datasheet (1.07 MB)

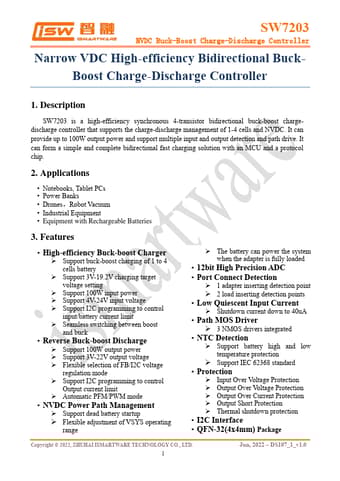

Preview of SW7203 PDF

Datasheet Details

Part number:

SW7203

Manufacturer:

ISMARTWARE

File Size:

1.07 MB

Description:

Nvdc buck-boost charge-discharge controller.
