SW730 Datasheet, Mosfet, SAMWIN

SW730 Features

  • Mosfet N-Channel MOSFET BVDSS (Minimum) RDS(ON) (Maximum) ID Qg (Typical) PD (@TC=25 ) : 400 V : 1.0 ohm : 6.0 A : 32 nc : 73 W SW730 This power MOSFET is produced in CHMC with advanced VDMOS

PDF File Details

Part number:

SW730

Manufacturer:

SAMWIN

File Size:

823.62kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Features N-Channel MOSFET BVDSS (Minimum) RDS(ON) (Maximum) ID Qg (Typical) PD (@TC=25 ) : 400 V : 1.0 ohm : 6.0 A : 32 nc : 73 W SW

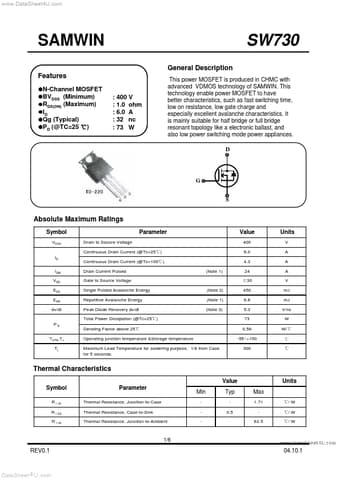

Datasheet Preview: SW730 📥 Download PDF (823.62kb)
Page 2 of SW730 Page 3 of SW730
