SW7N65 Datasheet, Mosfet, SAMWIN

SW7N65 Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 1.32 Ω)@VGS=10V
  • Gate Charge (Typ 35nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested 1. Gate 2. Drain 3

PDF File Details

Part number:

SW7N65

Manufacturer:

SAMWIN

File Size:

891.72kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

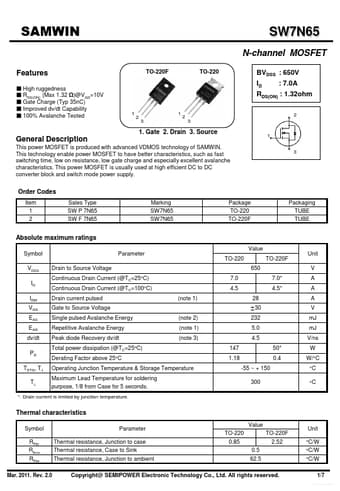

Datasheet Preview: SW7N65 📥 Download PDF (891.72kb)
Page 2 of SW7N65 Page 3 of SW7N65
