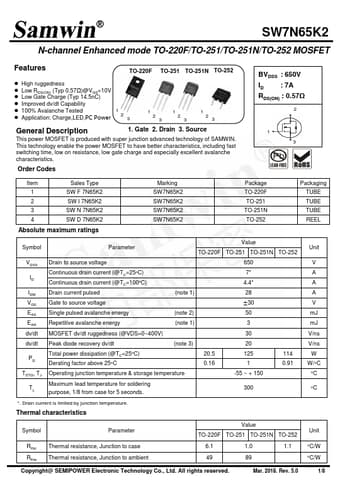

SW7N65K2 Datasheet, Mosfet, Samwin

SW7N65K2 Features

• Mosfet TO-220F TO-251 TO-251N TO-252
• High ruggedness
• Low RDS(ON) (Typ 0.57Ω)@VGS=10V
• Low Gate Charge (Typ 14.5nC)
• Improved dv/dt Capability

PDF File Details

Part number:

SW7N65K2

Manufacturer:

Samwin

File Size:

1.06MB

Download:

📄 Datasheet

Description:

N-channel mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with super junction advanced technology of SAMWIN. This technology enable
