SW7N60 Datasheet, Mosfet, SAMWIN

SW7N60 Features

  • Mosfet
  • N-Channel MOSFET
  • BVDSS (Minimum)
  • RDS(ON) (Maximum)
  • ID
  • Qg (Typical)
  • PD (@TC=25 ℃) : 600 V : 1 ohm : 7.0 A : 30 nc : 142 W SW7N60 Ge

PDF File Details

Part number:

SW7N60

Manufacturer:

SAMWIN

File Size:

443.61kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced in CHMC with advanced VDMOS process, planar stripe. This technology enable power MOSFET to have better

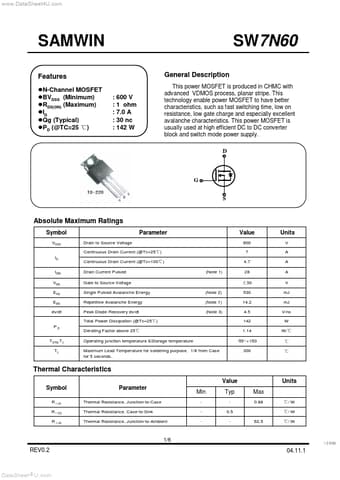

Datasheet Preview: SW7N60 📥 Download PDF (443.61kb)
Page 2 of SW7N60 Page 3 of SW7N60
