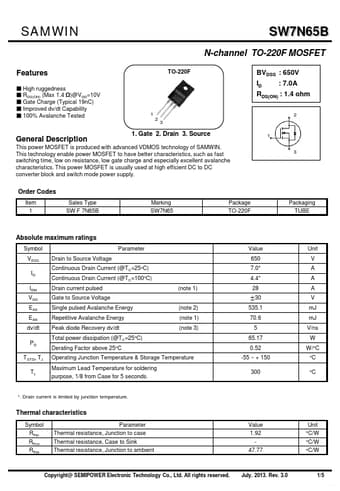

SW7N65B Datasheet, Mosfet, SEMIPOWER

SW7N65B Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 1.4 Ω)@VGS=10V
• Gate Charge (Typical 19nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-220F SW7N65B

PDF File Details

Part number:

SW7N65B

Manufacturer:

SEMIPOWER

File Size:

501.25kb

Download:

📄 Datasheet

Description:

N-channel to-220f mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOS

TAGS

SW7N65B

SEMIPOWER
