SW70N10V Datasheet, Mosfet, Samwin

SW70N10V Features

  • Mosfet
  • High ruggedness
  • Low RDS(ON) (Typ 12.4mΩ)@VGS=4.5V Low RDS(ON) (Typ 11.7mΩ)@VGS=10V
  • Low Gate Charge (Typ 117nC)
  • Improved dv/dt Capability

PDF File Details

Part number:

SW70N10V

Manufacturer:

Samwin

File Size:

761.84kb

Download:

📄 Datasheet

Description:

N-channel mosfet. 1 This power MOSFET is produced with advanced technology of SAMWIN. 3 This technology enable the power MOSFET to have better char

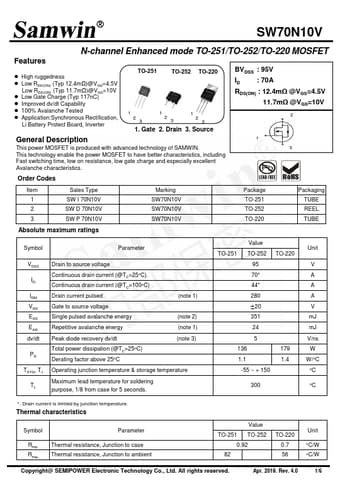

Datasheet Preview: SW70N10V 📥 Download PDF (761.84kb)
Page 2 of SW70N10V Page 3 of SW70N10V
