SW7126D

Ultra-Low Noise Amplifier

SW7126D Features

* make SW7126D an excellent choice for GNSS LNA as it improves sensitivity with low noise figure and high gain, provide better immunity against out-of-band jammer signals with high linearity, reduces filtering requirement of preceding stage and hence reduces the overall cost of the GNSS receiver. The

SW7126D General Description

The SW7126D is a Low Noise Amplifier designed for Global Navigation Satellite Systems (GNSS) as GPS, GLONASS, Galileo and Compass. The SW7126D requires only one external input matching inductor, reduces assembly complexity and the PCB area, enabling a cost-effective solution. The SW7126D achieves ul.

SW7126D Datasheet (631.60 KB)

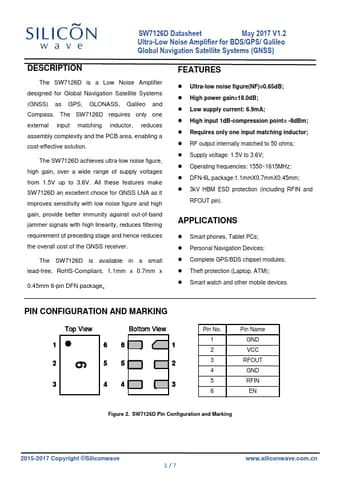

Preview of SW7126D PDF

Datasheet Details

Part number:

SW7126D

Manufacturer:

SILICON wave

File Size:

631.60 KB

Description:

Ultra-low noise amplifier.
