SW7135

Fully-integrated Front-End Module

SW7135 Features

* make SW7135 an excellent choice for GNSS FEM as it improves sensitivity with low noise figure and high gain, provide better immunity against out-of-band jammer signals with high linearity and jammerrejection, meanwhile it reduces the overall cost of the GNSS receiver. The SW7135 is available in a sm

SW7135 General Description

The SW7135 is a Front-End Module(FEM) with a fully-integrated Low- Noise Amplifier and PreFilter for BDS/GPS/ GNSS. The SW7135 requires no external capacitor/inductor, reduces assembly complexity and the PCB area, enabling a costeffective solution. The SW7135 achieves low noise figure, high gain, ex.

SW7135 Datasheet (733.43 KB)

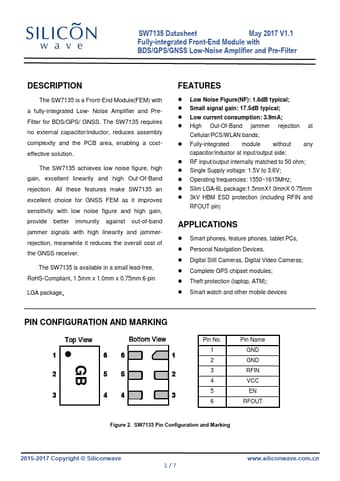

Preview of SW7135 PDF

Datasheet Details

Part number:

SW7135

Manufacturer:

SILICON wave

File Size:

733.43 KB

Description:

Fully-integrated front-end module.
