SW740U Datasheet, Mosfet, SEMIPOWER

SW740U Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 0.55Ω)@VGS=10V
  • Gate Charge (Typical 38nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested TO-220 BVDSS :

PDF File Details

Part number:

SW740U

Manufacturer:

SEMIPOWER

File Size:

402.75kb

Download:

📄 Datasheet

Description:

N-channel to-220 mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

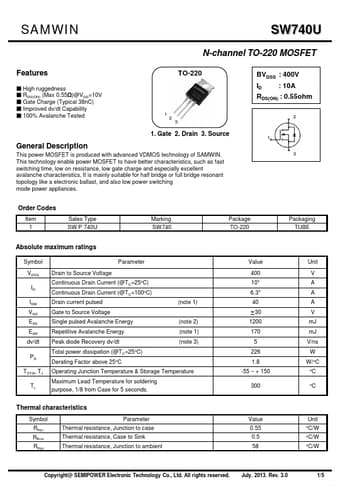

Datasheet Preview: SW740U 📥 Download PDF (402.75kb)
Page 2 of SW740U Page 3 of SW740U
