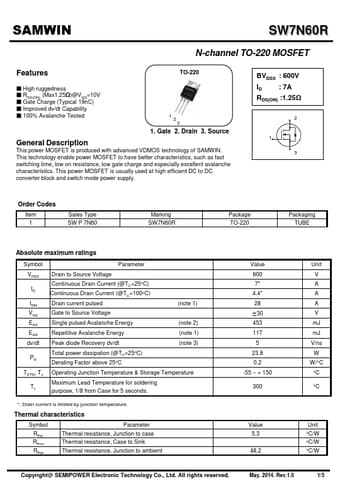

SW7N60R Datasheet, Mosfet, SEMIPOWER

SW7N60R Features

• Mosfet TO-220
• High ruggedness
• RDS(ON) (Max1.25Ω)@VGS=10V
• Gate Charge (Typical 19nC)
• Improved dv/dt Capability
• 100% Avalanche Tested 12 3 1.

PDF File Details

Part number:

SW7N60R

Manufacturer:

SEMIPOWER

File Size:

640.00kb

Download:

📄 Datasheet

Description:

Mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri
