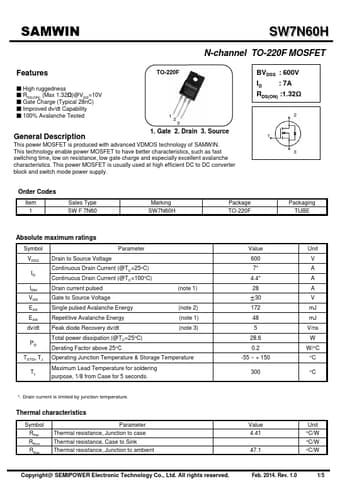

SW7N60H Datasheet, Mosfet, SEMIPOWER

SW7N60H Features

• Mosfet TO-220F
• High ruggedness
• RDS(ON) (Max 1.32Ω)@VGS=10V
• Gate Charge (Typical 28nC)
• Improved dv/dt Capability
• 100% Avalanche Tested 12 3

PDF File Details

Part number:

SW7N60H

Manufacturer:

SEMIPOWER

File Size:

513.13kb

Download:

📄 Datasheet

Description:

Mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MO

TAGS

SW7N60H

SEMIPOWER
