SW7230

Adaptive 100/120Hz Current Ripple Remover

SW7230 Features

* Adaptive 100/120Hz current ripple remover Input voltage range 5V~60V Built-in 60V power MOSFET LED voltage low to 0.4V when LED current is 1.3A Programmable amplitude of LED current ripple Programmable maximum cathode voltage of LED I

SW7230 General Description

TYPICAL APPLICATION www.semipower.com.cn 1 SW7230 Adaptive 100/120Hz Current Ripple Remover (Max 1A) ORDERING INFORMATION PART MARKING SW7230 PACKAGE DESCRIPTION TO252-5L Top Marking SW7230 Package Form PIN CONFIGURATION Top View eSOP8 ABSOLUTE MAXIMUM RATING 1) VIN PIN 60V LED PIN VC, V.

SW7230 Datasheet (1.07 MB)

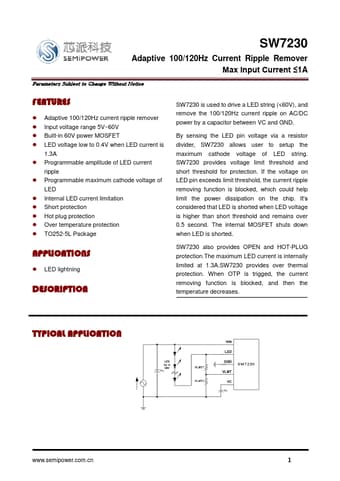

Preview of SW7230 PDF

Datasheet Details

Part number:

SW7230

Manufacturer:

SEMIPOWER

File Size:

1.07 MB

Description:

Adaptive 100/120hz current ripple remover.
