SW7N60K Datasheet, Mosfet, SEMIPOWER

SW7N60K Features

• Mosfet TO-220F TO-251
• High ruggedness
• RDS(ON) (Max 0.6Ω)@VGS=10V
• Gate Charge (Typical 21nC)
• Improved dv/dt Capability
• 100% Avalanche Tested

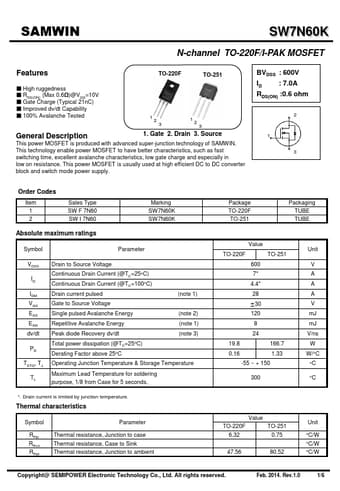

PDF File Details

Part number:

SW7N60K

Manufacturer:

SEMIPOWER

File Size:

642.84kb

Download:

📄 Datasheet

Description:

Mosfet. 1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced super-junction technology of SAMWIN. This technology enable
