Description
- JEDEC Standard
Symbol
Type
Function
CK, CK# CKE
CS# ODT RAS#.CAS#.WE# DM, (DMU), (DML) BA0 - BA2 A0 - A14
A10 / AP
A12 / BC# RESET#
DQ( DQL, DQU)
Input Input
Input Input Input
Clock: CK and CK# are differential clock inputs.All address and control input signals are sampled on the crossing of the positive edge of CK and negative edge of CK#.Clock Enable: CKE HIGH activates, and CKE Low deactivates, internal clock signals and device input buffers and output drivers.Taking CKE Low prov

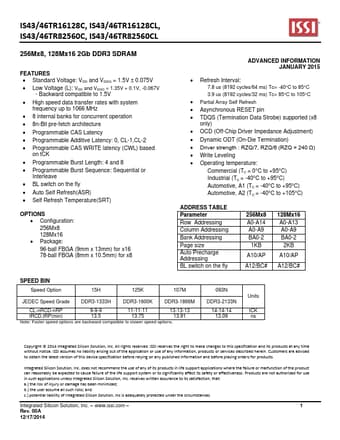

Features
- Standard Voltage: VDD and VDDQ = 1.5V ± 0.075V.
- Low Voltage (L): VDD and VDDQ = 1.35V + 0.1V, -0.067V
- Backward compatible to 1.5V.
- High speed data transfer rates with system
frequency up to 1066 MHz.
- 8 internal banks for concurrent operation.
- 8n-Bit pre-fetch architecture.
- Programmable CAS Latency.
- Programmable Additive Latency: 0, CL-1,CL-2.
- Programmable CAS WRITE latency (CWL) based
on tCK.
- Programmable Burst Length: 4 and 8.
- Programmable Bu.
