IS61QDB24M18 QUAD (Burst of 2) Synchronous SRAMs

The 72Mb IS61QDB22M36 and IS61QDB24M18 are synchronous, high-performance CMOS static random access memory (SRAM) devices. These SRAMs have separate I/Os, eliminating the need for high-speed bus turnaround. The rising edge of K clock initiates the read/write operation, and all internal operations are.

IS61QDB24M18 Features

* 2M x 36 or 4M x 18.

* On-chip delay-locked loop (DLL) for wide data valid window.

* Separate read and write ports with concurrent read and write operations.

* Synchronous pipeline read with early write operation.

* Double data rate (DDR) interface for read a

IS61QDB22M36-ISSI.pdf

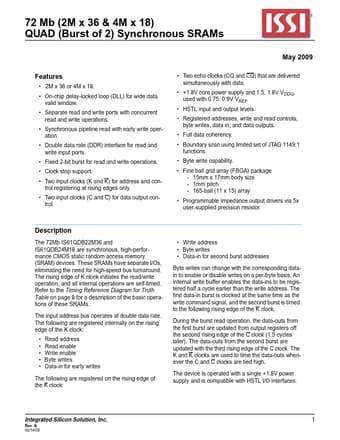

IS61QDB24M18 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61QDB24M18, IS61QDB22M36. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS61QDB24M18, IS61QDB22M36

Manufacturer:

ISSI

File Size:

627.97 KB

Description:

Quad (burst of 2) synchronous srams.

Note:

This datasheet PDF includes multiple part numbers: IS61QDB24M18, IS61QDB22M36.
Please refer to the document for exact specifications by model.
