IS61WV6416BLL, IS64WV6416BLL - 64K x 16 HIGH-SPEED CMOS STATIC RAM

ISSI

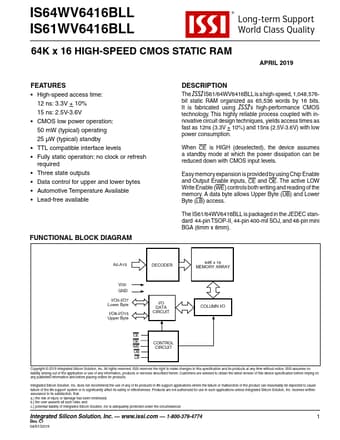

IS61WV6416BLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61WV6416BLL, IS64WV6416BLL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS61WV6416BLL, IS64WV6416BLL
Manufacturer	ISSI
File Size	336.96 KB
Description	64K x 16 HIGH-SPEED CMOS STATIC RAM
Datasheet	IS64WV6416BLL_ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS61WV6416BLL, IS64WV6416BLL. Please refer to the document for exact specifications by model.

IS61WV6416BLL Product details

Description

The ISSI IS61/64WV6416BLL is a high-speed, 1,048,576- bit static RAM organized as 65,536 words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12ns (3.3V + 10%) and 15ns (2.5V-3.6V) with low power consumption.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory

Features

High-speed access time: 12 ns: 3.3V + 10% 15 ns: 2.5V-3.6V.
CMOS low power operation: 50 mW (typical) operating 25 µW (typical) standby.
TTL compatible interface levels.
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Automotive Temperature Available.
Lead-free available.
