IS62WV6416DBLL, IS62WV6416DALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

The IS62WV6416DBLL by ISSI is a ULTRA LOW POWER CMOS STATIC RAM. Below is the official datasheet preview.

📥 Download Datasheet

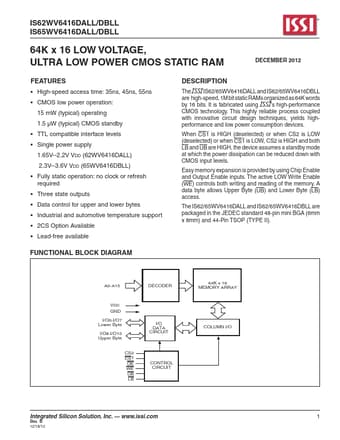

IS62WV6416DBLL ULTRA LOW POWER CMOS STATIC RAM by ISSI - Datasheet Preview — Official preview page of the **IS62WV6416DBLL** ULTRA LOW POWER CMOS STATIC RAM datasheet (ISSI).

Datasheet Details

Part number	IS62WV6416DBLL, IS62WV6416DALL
Manufacturer	ISSI
File Size	431.01 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV6416DALL-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS62WV6416DBLL, IS62WV6416DALL. Please refer to the document for exact specifications by model.
Additional preview pages of the IS62WV6416DBLL datasheet.

IS62WV6416DBLL Product details

Description

The ISSI IS62/65WV6416DALL and IS62/65WV6416DBLL are high-speed, 1M bit static RAMs organized as 64K words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) or when CS2 is LOW (deselected) or when CS1 is LOW, CS2 is HIGH and both LB and UB are HIGH, the device assumes a standby mode at which the power di

Features

High-speed access time: 35ns, 45ns, 55ns.
CMOS low power operation: 15 mW (typical) operating 1.5 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply 1.65V--2.2V Vdd (62WV6416DALL) 2.3V--3.6V Vdd (65WV6416DBLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial and automotive temperature support.
2CS Option Ava.
