IS62WV6416ALL Datasheet - Integrated Silicon Solution

IS62WV6416ALL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62WV6416ALL/ IS62WV6416BLL are highspeed, 1M bit static RAMs organized as 64K words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption .

IS62WV6416ALL Features

* High-speed access time: 45ns, 55ns

* CMOS low power operation: 30 mW (typical) operating 15 µW (typical) CMOS standby

* TTL compatible interface levels

* Single power supply 1.7V

* 2.2V VDD (62WV6416ALL) 2.5V

* 3.6V VDD (62WV6416BLL)

* Fully stat

IS62WV6416ALL_IntegratedSiliconSolution.pdf

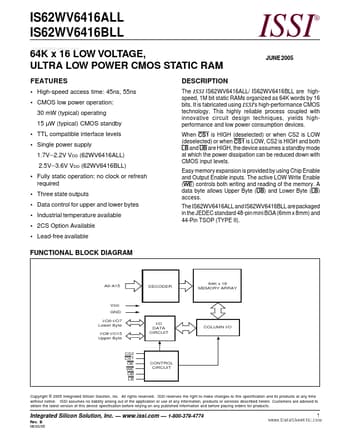

IS62WV6416ALL Datasheet Preview — Preview of IS62WV6416ALL PDF

Datasheet Details

Part number:

IS62WV6416ALL

Manufacturer:

Integrated Silicon Solution

File Size:

154.60 KB

Description:

Ultra low power cmos static ram.
