DSEE55-24N1F, Dual HiPerFRED Epitaxial Diode

www.DataSheet4U.com Advanced Technical Information Dual HiPerFREDTM Epitaxial Diode in ISOPLUS i4-PACTM DSEE 55-24N1F VRRM = 2400 V IF(AV)M = 55 A.

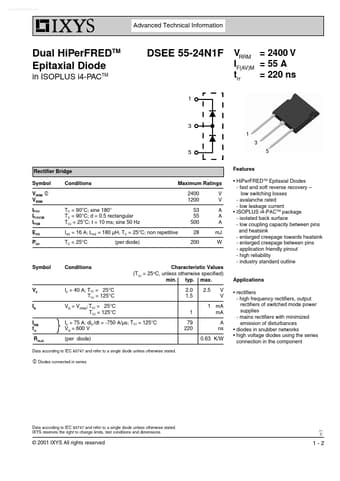

datasheet Preview Page 1 from Datasheet4u.com

DSEE55-24N1F_IXYSCorporation.pdf

DSEE55-24N1F Datasheet Preview — Preview of DSEE55-24N1F PDF

Datasheet Details

Part number:

DSEE55-24N1F

Manufacturer:

IXYS Corporation

File Size:

73.56 KB

Description:

Dual HiPerFRED Epitaxial Diode

Features

* 5
* HiPerFREDTM Epitaxial Diodes - fast and soft reverse recovery
* low switching losses - avalanche rated - low leakage current
* ISOPLUS i4-PACTM package - isolated back surface - low coupling capacity between pins and heatsink - enlarged creepage towards heatsink - enlar

Applications

* rectifiers - high frequency rectifiers, output rectifiers of switched mode power supplies - mains rectifiers with minimized emission of disturbances
* diodes in snubber networks
* high voltage diodes using the series connection in the component VF IR IRM trr RthJC IF = 40
