IXFB100N50P - Power MOSFET

PolarHVTM HiPerFET Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFB 100N50P VDSS ID25 RDS(on) trr = 500 V = 100 A ≤ 49 mΩ ≤ 200 ns Symbol VDSS VDGR VGSS VGSM ID25 IDRMS IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL TSOLD FC Weight Test Conditions TJ = 25° C to 150° C TJ = 25° C to 150° C; RGS = 1 MΩ Continuous Transient TC = 25° C External lead current limit TC = 25° C, pulse width limited by TJM TC = 25° C TC = 25° C TC = 25° C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤

IXFB100N50P Features

* l l l l International standard packages Fast recovery diode Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 1.6 mm (0.062 in.) from case for 10 s Plastic body for 10 s Mounting force 300 260 30..120/7.52.7 10 Advantages l l l Plus 264TM package f

IXFB100N50P_IXYSCorporation.pdf

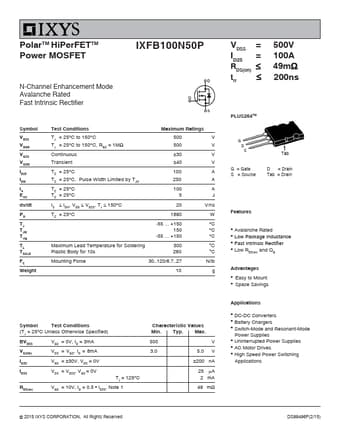

Preview of IXFB100N50P PDF
