* z Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 1000 2.5 5.0 ± 200 TJ = 25°C TJ = 125°C 50 2 0.40 V V nA µA mA Ω z z VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 3mA VDS = VGS, ID = 8 mA VGS = ±30 VDC, VDS = 0 VDS = VDSS VGS = 0 V z z D
IXFK30N100Q2 Datasheet (603.14 KB)
IXFK30N100Q2
IXYS Corporation
603.14 KB
Power mosfet.
www.DataSheet4U.com

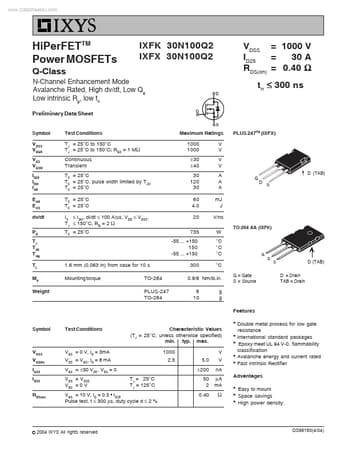

HiPerFETTM Power MOSFETs
Q-Class
IXFK 30N100Q2 IXFX 30N100Q2
VDSS = 1000 V = 30 A ID25 RDS(on) = 0.40 Ω trr ≤ 300 ns
N-Channel.
