IXFK100N10 Power MOSFET

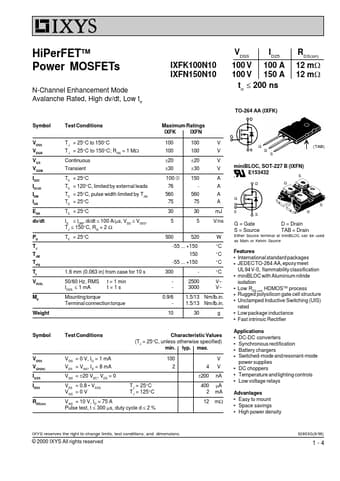

HiPerFETTM Power MOSFETs N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low trr VDSS IXFK100N10 IXFN150N10 ID25 RDS(on) 12 mW 12 mW 100 V 100 A 100 V 150 A trr £ 200 ns TO-264 AA (IXFK) Symbol VDSS VDGR VGS VGSM ID25 ID120 IDM IAR EAR dv/dt PD TJ TJM Tstg TL VISOL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MW Continuous Transient TC = 25°C TC = 120°C, limited by external leads TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS £ IDM, di/dt £.

IXFK100N10 Features

* International standard packages JEDEC TO-264 AA, epoxy meet UL 94 V-0, flammability classification miniBLOC with Aluminium nitride isolation Low RDS (on) HDMOSTM process Rugged polysilicon gate cell structure Unclamped Inductive Switching (UIS) rated Low package inductance Fast intrinsic Rectifier q
