IXFK120N20 Power MOSFET

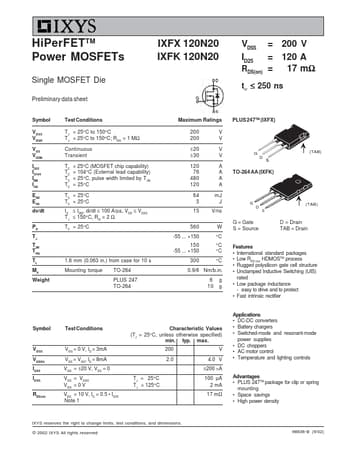

HiPerFETTM Power MOSFETs Single MOSFET Die Preliminary data sheet IXFX 120N20 IXFK 120N20 V= DSS ID25 = = RDS(on) 200 V 120 A 17 mΩ trr ≤ 250 ns Symbol VDSS VDGR VGS VGSM ID25 ID104 IDM IAR EAR EAS dv/dt PD TJ T JM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C (MOSFET chip capability) TC = 104°C (External lead capability) TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, V.

IXFK120N20 Features

* International standard packages

* Low RDS (on) HDMOSTM process

* Rugged polysilicon gate cell structure

* Unclamped Inductive Switching (UIS) rated

* Low package inductance - easy to drive and to protect

* Fast intrinsic rectifier Symbol VDSS V GS(t

IXFX120N20-IXYS.pdf

IXFK120N20 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXFK120N20, IXFX120N20. Please refer to the document for exact specifications by model.
