IXFK120N20P, IXFH120N20P Datasheet - IXYS Corporation

IXFK120N20P Power MOSFET

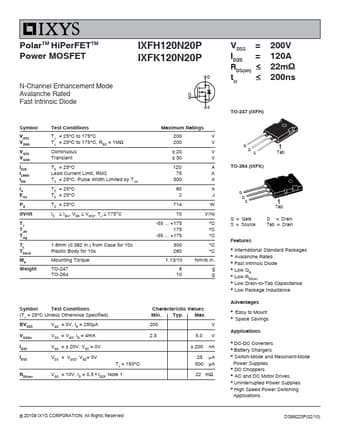

PolarTM HiPerFETTM Power MOSFET IXFH120N20P IXFK120N20P N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode Symbol VDSS VDGR VGSS VGSM ID25 ILRMS IDM IA EAS PD dV/dt TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Continuous Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 175°C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s Mounting .

IXFK120N20P Features

* z International Standard Packages z Avalanche Rated z Fast Intrinsic Diode z Low QG z Low RDS(on) z Low Drain-to-Tab Capacitance z Low Package Inductance Advantages z Easy to Mount z Space Savings Applications z DC-DC Coverters z Battery Chargers z Switch-Mode and Resonant-Mode Power Supplies z DC C
