IXFK100N25 Power MOSFET

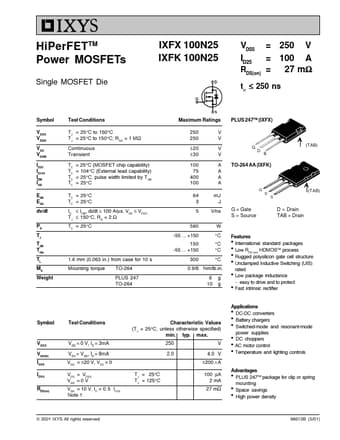

HiPerFETTM Power MOSFETs Single MOSFET Die IXFX 100N25 IXFK 100N25 VDSS ID25 RDS(on) = 250 V = 100 A = 27 mΩ trr ≤ 250 ns Symbol VDSS VDGR VGS VGSM ID25 ID104 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC TC TC TC = 25°C (MOSFET chip capability) = 104°C (External lead capability) = 25°C, pulse width limited by TJM = 25°C Maximum Ratings 250 250 ± 20 ± 30 100 75 400 100 64 3 5 560 -55 +150 150 -5.

IXFK100N25 Features

* l International standard packages l Low RDS (on) HDMOSTM process l Rugged polysilicon gate cell structure l Unclamped Inductive Switching (UIS) rated l Low package inductance - easy to drive and to protect l Fast intrinsic rectifier Symbol Test Conditions Characteristic Values (TJ = 25°C, unless
