* z IXYS advanced low Qg process z Low gate charge and capacitances - easier to drive - faster switching z International standard packages z Low RDS (on) z Unclamped Inductive Switching (UIS) rated z Molding epoxies meet UL 94 V-0 flammability classification Advantages z PLUS 247TM package for clip or
IXFK32N50Q Datasheet (631.32 KB)
IXFK32N50Q
IXYS
631.32 KB
Power mosfet.

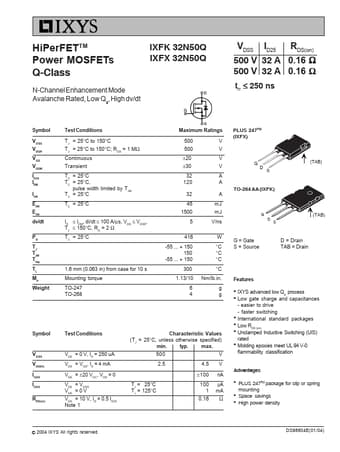

HiPerFETTM Power MOSFETs
Q-Class
IXFK 32N50Q IXFX 32N50Q
N-Channel Enhancement Mode Avalanche Rated, Low Qg, High dv/dt
VDSS ID25
500 V 32 A 500 V .
