IXFK94N50P2 Power MOSFET

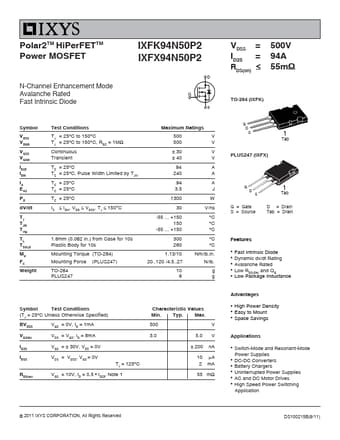

Polar2TM HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFK94N50P2 IXFX94N50P2 VDSS = ID25 = RDS(on) ≤ 500V 94A 55mΩ TO-264 (IXFK) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD dV/dt TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C 1.6mm (0.062 in.) from Case for 10s Pl.

IXFK94N50P2 Features

* z Fast Intrinsic Diode z Dynamic dv/dt Rating z Avalanche Rated z Low RDS(ON) and QG z Low Package Inductance Advantages z High Power Density z Easy to Mount z Space Savings Applications z Switch-Mode and Resonant-Mode Power Supplies z DC-DC Converters z Battery Chargers z Uninterrupted Power Suppli
