IXGH22N50BS, IXGH22N50B, HiPerFAST IGBT

Preliminary data HiP erF ASTTM IGBT HiPerF erFAST IXGH22N50B IXGH22N50BS VCES IC(25) VCE(sat)typ tfi(typ) TO-247 SMD * = 500 V = 44 A = 2.1 V =.

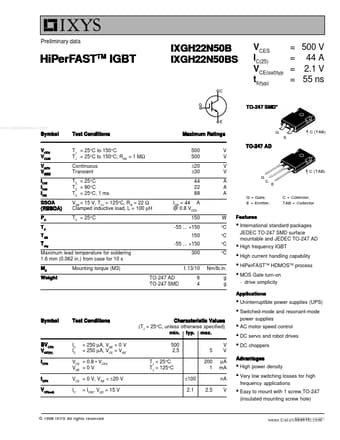

datasheet Preview Page 1 from Datasheet4u.com

IXGH22N50B_IXYSCorporation.pdf

IXGH22N50BS Datasheet Preview — This datasheet PDF includes multiple part numbers: IXGH22N50BS, IXGH22N50B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXGH22N50BS, IXGH22N50B

Manufacturer:

IXYS Corporation

File Size:

75.75 KB

Description:

HiPerFAST IGBT

Note:

This datasheet PDF includes multiple part numbers: IXGH22N50BS, IXGH22N50B.
Please refer to the document for exact specifications by model.

Features

* International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD Maximum lead temperature for soldering 1.6 mm (0.062 in. ) from case for 10 s Md Weight Mounting torque (M3)
* High frequency IGBT
* High current handling capability
* HiPerFAST

Applications

* Uninterruptible power supplies (UPS)
* Switched-mode and resonant-mode Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 500 2.5 TJ = 25°C TJ = 125°C ±100 2.1 2.5 V V µA mA nA V power supplies BVCES VGE(th) ICES IGES VCE(sat) IC
