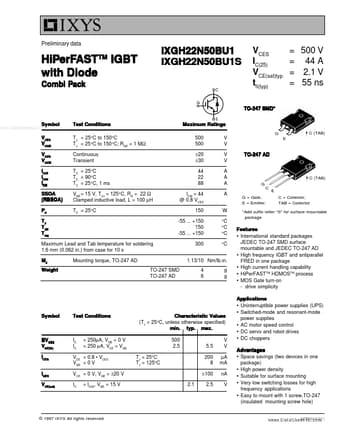

IXGH22N50BU1 Datasheet, IGBT, IXYS Corporation

IXGH22N50BU1 Features

• Igbt
• International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD
• High frequency IGBT and antiparallel FRED in one package
• High curren

PDF File Details

Part number:

IXGH22N50BU1

Manufacturer:

IXYS Corporation

File Size:

76.46kb

Download:

📄 Datasheet

Description:

Hiperfast igbt.

IXGH22N50BU1 Application

• Applications
• Uninterruptible power supplies (UPS)
• Switched-mode and resonant-mode power supplies
• AC motor speed contro
