IXGH24N60C Datasheet, Igbt, IXYS Corporation

IXGH24N60C Features

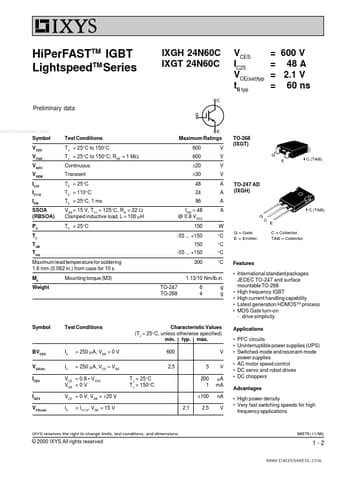

• Igbt G = Gate, E = Emitter, Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting torque (M3) TO-247 TO-268 1.13/10 Nm/lb.in. 6 4 g g
• I

PDF File Details

Part number:

IXGH24N60C

Manufacturer:

IXYS Corporation

File Size:

85.91kb

Download:

📄 Datasheet

Description:

Hiperfast igbt.

IXGH24N60C Application

• Applications
• PFC circuits
• Uninterruptible power supplies (UPS)
• Switched-mode and resonant-mode power supplies

TAGS

IXGH24N60C

IXYS Corporation
