IXGH28N140B3H1 Datasheet, IGBT, IXYS Corporation

IXGH28N140B3H1 Features

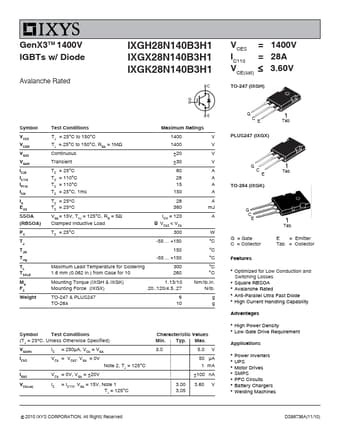

• Igbt z PLUS247 (IXGX) G C E Tab TO-264 (IXGK) TC = 25°C TC = 25°C VGE = 15V, TVJ = 125°C, RG = 5Ω Clamped Inductive Load TC = 25°C G C E Tab E = Emitter Tab = Collector Maximum Lea

PDF File Details

Part number:

IXGH28N140B3H1

Manufacturer:

IXYS Corporation

File Size:

260.09kb

Download:

📄 Datasheet

Description:

1400v igbt.

IXGH28N140B3H1 Application

• Applications z z z z z z z Power Inverters UPS Motor Drives SMPS PFC Circuits Battery Chargers Welding Machines © 2010 IXYS CORPORATION, All Right
