IXGH28N30B HiPerFAST IGBT

HiPerFASTTM IGBT IXGH 28N30B IXGT 28N30B VCES IC25 VCE(sat)typ tfi(typ) = 300 V = 56 A = 2.1 V = 55 ns Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load, L = 100 mH TC = 25°C Maximum Ratings 300 300 ±20 ±30 56 28 112 ICM = 56 @ 0.8 VCES 150 -55 +150 150 -55 +150 300 260 V V V V A A A A W °C .

IXGH28N30B Features

* International standard packages JEDEC TO-268 surface and JEDEC TO-247 AD

* High current handling capability

* Newest generation HDMOSTM process

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed contro

IXGH28N30B Datasheet (52.70 KB)

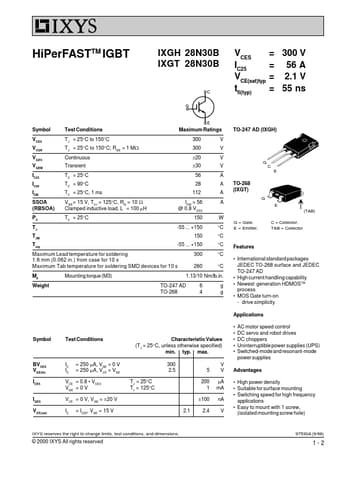

IXGH28N30B Datasheet Preview — Preview of IXGH28N30B PDF
