IXGH28N30 HiPerFAST IGBT

HiPerFASTTM IGBT IXGH 28N30 IXGT 28N30 VCES IC25 VCE(sat)typ tfi(typ) = 300 V = 56 A = 1.6 V = 180 ns Preliminary data Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load, L = 100 mH TC = 25°C Maximum Ratings 300 300 ±20 ±30 56 28 112 ICM = 56 @ 0.8 VCES 150 -55 +150 150 -55 +150 300 260 V V .

IXGH28N30 Features

* International standard packages JEDEC TO-268 surface and JEDEC TO-247 AD

* High current handling capability

* Newest generation HDMOSTM process

* MOS Gate turn-on - drive simplicity Applications

* AC motor speed control

* DC servo and robot drives

IXGH28N30 Datasheet (52.87 KB)

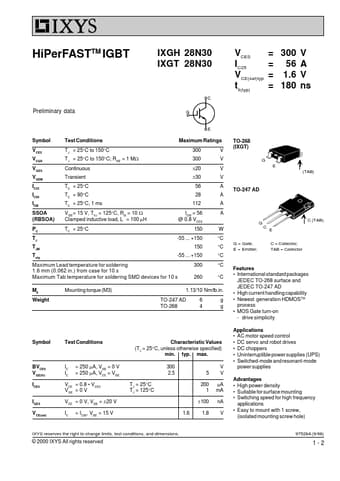

IXGH28N30 Datasheet Preview — Preview of IXGH28N30 PDF
