IXGT6N170A High Voltage IGBT

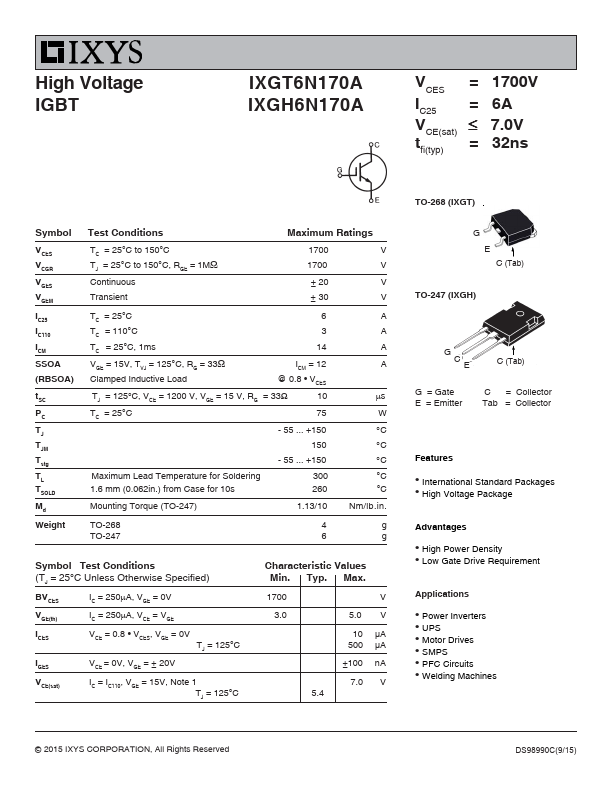

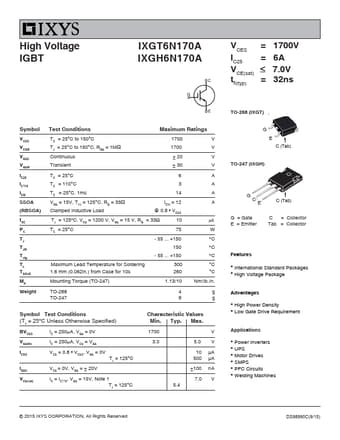

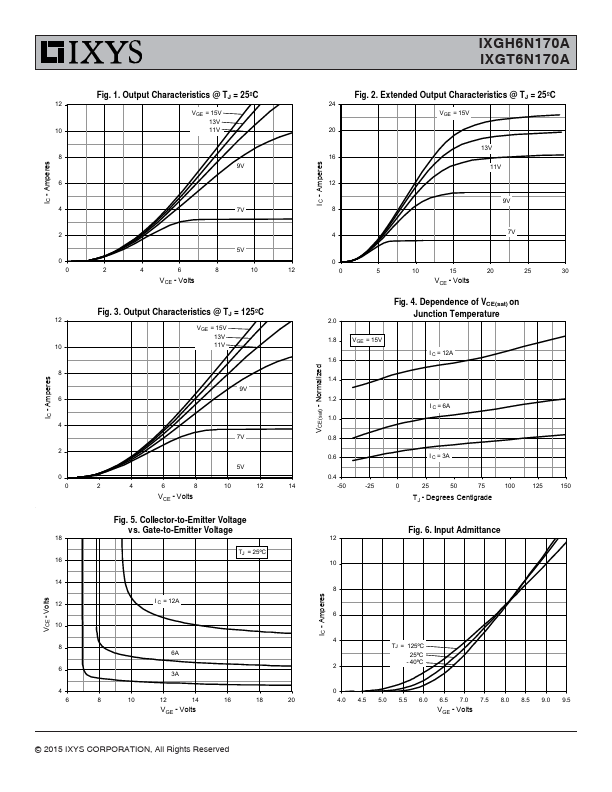

High Voltage IGBT IXGT6N170A IXGH6N170A VCES = IC25 = VCE(sat)  tfi(typ) = 1700V 6A 7.0V 32ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) tSC PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M Continuous Transient Maximum Ratings 1700 V 1700 V ± 20 V ± 30 V TC = 25°C TC = 110°C TC = 25°C, 1ms 6 A 3 A 14 A VGE = 15V, TVJ = 125°C, RG = 33 ICM = 12 A Clamped Inductive Load @ 0.8 VCES TJ = 125C,.

IXGT6N170A Features

* International Standard Packages

* High Voltage Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* PFC Circuits
