IXGT72N60A3 Datasheet, IGBT, IXYS Corporation

IXGT72N60A3 Features

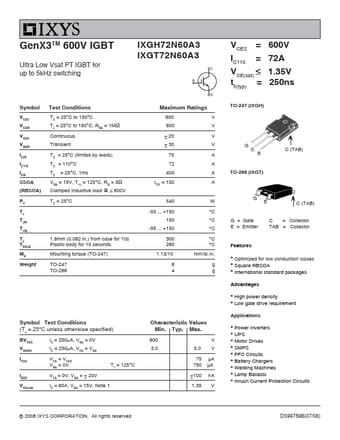

• Igbt z z z Optimized for low conduction losses Square RBSOA International standard packages Advantages z z High power density Low gate drive requirement Applications Symbol Test Conditi

PDF File Details

Part number:

IXGT72N60A3

Manufacturer:

IXYS Corporation

File Size:

258.88kb

Download:

📄 Datasheet

Description:

Genx3 600v igbt.

IXGT72N60A3 Application

• Applications Symbol Test Conditions (TJ = 25°C unless otherwise specified) BVCES VGE(th) ICES IGES VCE(sat) IC = 250μA, VGE = 0V IC = 250μA, VCE =
