IXSX50N60AU1S, IXSX50N60AU1 Datasheet - IXYS Corporation

IXSX50N60AU1S, IXSX50N60AU1, IGBT

www.DataSheet4U.com Preliminary data IGBT with Diode Combi Pack Short Circuit SOA Capability VCES = 600 V IXSX50N60AU1 = 75 A IXSX50N60AU1S I C25 V.

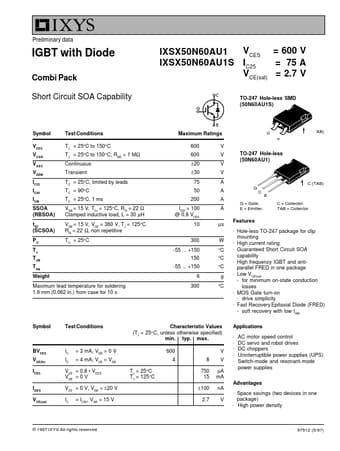

datasheet Preview Page 1 from Datasheet4u.com

IXSX50N60AU1_IXYSCorporation.pdf

IXSX50N60AU1S Datasheet Preview — This datasheet PDF includes multiple part numbers: IXSX50N60AU1S, IXSX50N60AU1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXSX50N60AU1S, IXSX50N60AU1

Manufacturer:

IXYS Corporation

File Size:

123.11 KB

Description:

IGBT

Note:

This datasheet PDF includes multiple part numbers: IXSX50N60AU1S, IXSX50N60AU1.
Please refer to the document for exact specifications by model.

Features

* l l l l Maximum lead temperature for soldering 1.6 mm (0.062 in. ) from case for 10 s l Hole-less TO-247 package for clip mounting High current rating Guaranteed Short Circuit SOA capability High frequency IGBT and antiparallel FRED in one package Low V CE(sat) - for minimum on-state conduction

Applications

* l l BVCES VGE(th) ICES IGES VCE(sat) IC IC = 3 mA, VGE = 0 V = 4 mA, VCE = VGE l l l VCE = 0.8
* VCES VGE = 0 V VCE = 0 V, VGE = ±20 V IC = IC90, VGE = 15 V AC motor speed control DC servo and robot drives DC choppers Uninterruptible power supplies (UPS) Switch-mode and resonant-mode p
