IXSX35N120BD1 - HIGH VOLTAGE IGBT WITH DIODE

Datasheet Summary

Features

Hole-less TO-247 package for clip mounting High frequency IGBT and anti-parallel FRED in one package Low VCE(sat) - for minimum on-state conduction losses MOS Gate turn-on - drive simplicity Fast Recovery Epitaxial Diode (FRED) - soft recovery with low IRM.

IXYS Corporation

📥 Download Datasheet

Datasheet Details

Part number	IXSX35N120BD1
Manufacturer	IXYS Corporation
File Size	118.52 KB
Description	HIGH VOLTAGE IGBT WITH DIODE
Datasheet	IXSX35N120BD1 Datasheet

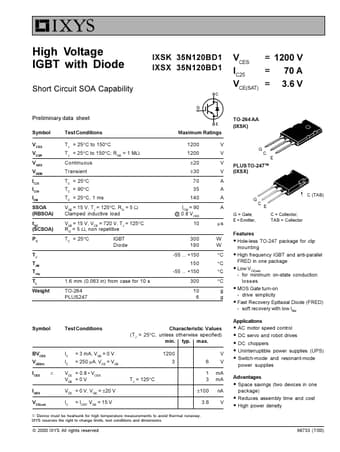

Additional preview pages of the IXSX35N120BD1 datasheet.

📁 Similar Datasheet

IXSH10N60B2D1 - High-Speed IGBT (IXYS)
IXSH15N120B - High-Voltage IGBT (IXYS)
IXSH16N60U1 - IGBT (IXYS)
IXSH20N60 - High Speed IGBT (IXYS)
IXSH20N60A - High Speed IGBT (IXYS)
IXSH20N60B2D1 - High Speed IGBT (IXYS)
IXSH24N60 - IGBT (IXYS)
IXSH24N60A - IGBT (IXYS)
IXSH24N60B - High Speed IGBT (IXYS)
IXSH24N60BD1 - High Speed IGBT (IXYS)

Other Datasheets by IXYS Corporation

IXSX40N60CD1 - IGBT
IXSX50N60AU1 - IGBT
IXSX50N60AU1S - IGBT
IXSX50N60BU1 - IGBT
IXSX80N60B - High Current IGBT Short Circuit SOA Capability
IXSA10N60B2D1 - High Speed IGBT
IXSA15N120B - High Voltage IGBT
IXSA16N60 - Short Circuit SOA Capability

Full PDF Text Transcription

Click to expand full text

High Voltage IGBT with Diode Short Circuit SOA Capability Preliminary data sheet Symbol VCES VCGR VGES VGEM I C25 I C90 ICM SSOA (RBSOA) tSC (SCSOA) PC TJ TJM Tstg TL Weight 1.6 mm (0.063 in) from case for 10 s TO-264 PLUS247 Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TJ = 125°C, RG = 5 W Clamped inductive load VGE = 15 V, VCE = 720 V, TJ = 125°C RG = 5 W, non repetitive TC = 25°C IGBT Diode IXSK 35N120BD1 IXSX 35N120BD1 VCES = 1200 V IC25 = 70 A VCE(SAT) = 3.6 V Maximum Ratings 1200 1200 ± 20 ± 30 70 35 140 ICM = 90 @ 0.8 VCES 10 300 190 -55 ... +150 150 -55 ...
