MWI15-12A7

IGBT Modules Sixpack

MWI15-12A7 Features

* NPT IGBT technology low saturation voltage low switching losses switching frequency up to 30 kHz square RBSOA, no latch up high short circuit capability positive temperature coefficient for easy parallelling MOS input, voltage controlled ultra fast free wheeling diodes solderable pins for PCB mounti

MWI15-12A7 Datasheet (163.09 KB)

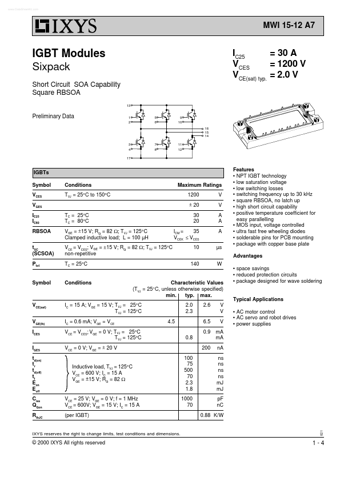

Preview of MWI15-12A7 PDF

Datasheet Details

Part number:

MWI15-12A7

Manufacturer:

IXYS Corporation

File Size:

163.09 KB

Description:

Igbt modules sixpack.
www.DataSheet4U.com MWI 15-12 A7 IGBT Modules Sixpack Short Circuit SOA Capability Square RBSOA 13 IC25 = 30 A = 1200 V VCES VCE(sat) typ. = 2.0 V .
