MWI225-12E9 IGBT Module

MWI 225-12 E9 phase-out IGBT Modules Sixpack NPT3 IGBT 15 28 16 17 29 13 14 2 20 21 22 11/12 18 19 1 4 25 26 27 9/10 23 24 3 6 7/8 5 IGBTs Symbol VCES VGES IC25 IC80 RBSOA tSC (SCSOA) Ptot Conditions TVJ = 25°C to 125°C TC = 25°C TC = 80°C RG = 5 Ω; TVJ = 125°C Clamped inductive load; L = 100 µH VCE = 900 V; VGE = ±15 V; RG = 5 Ω TVJ = 125°C; non-repetitive; VCEmax < VCES TC = 25°C Maximum Ratings 1200 V ± 20 V 355 250 ICM = 500 VCEK < VCES 10 A A A µs 1.4 kW Symbol VCE(sat) VGE(.

MWI225-12E9 Features

* NPT3 IGBT technology

* low saturation voltage

* low switching losses

* square RBSOA, no latch up

* high short circuit capability

* positive temperature coefficient for easy parallelling

* MOS input, voltage controlled

* ultra fast fre

MWI225-12E9 Datasheet (404.67 KB)

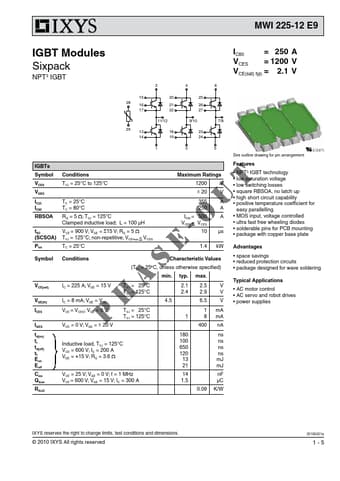

MWI225-12E9 Datasheet Preview — Preview of MWI225-12E9 PDF
