MWI150-06A8 - IGBT Modules

IXYS Corporation

📥 Download Datasheet

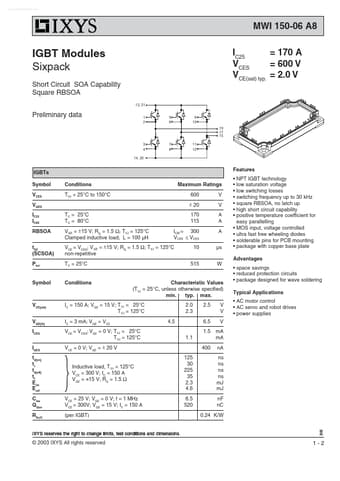

MWI150-06A8 Datasheet Preview — Preview of MWI150-06A8 PDF

datasheet Preview Page 2

Datasheet Details

Part number	MWI150-06A8
Manufacturer	IXYS Corporation
File Size	122.18 KB
Description	IGBT Modules
Datasheet	MWI150-06A8_IXYSCorporation.pdf

MWI150-06A8 Product details

Features

NPT IGBT technology.
low saturation voltage.
low switching losses.
switching frequency up to 30 kHz.
square RBSOA, no latch up.
high short circuit capability.
positive temperature coefficient for easy parallelling.
MOS input, voltage controlled.
ultra fast free wheeling diodes.
solderable pins for PCB mounting.
package with copper base plate Advantages TC = 25°C.
space savings.
r.
