MWI100-12A8 Datasheet - IXYS

MWI100-12A8, IGBT Module

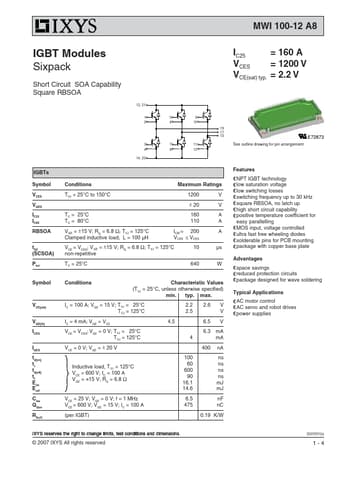

MWI 100-12 A8 IGBT Modules Sixpack Short Circuit SOA Capability Square RBSOA IC25 = 160 A VCES = 1200 V VCE(sat) typ.= 2.2 V 13, 21 IGBTs Symb.

datasheet Preview Page 1 from Datasheet4u.com

MWI100-12A8-IXYS.pdf

MWI100-12A8 Datasheet Preview — Preview of MWI100-12A8 PDF

Datasheet Details

Part number:

MWI100-12A8

Manufacturer:

IXYS

File Size:

124.38 KB

Description:

IGBT Module

Features

* €€NPT IGBT technology €€low saturation voltage €€low switching losses €€switching frequency up to 30 kHz €€square RBSOA, no latch up €€high short circuit capability €€positive temperature coefficient for easy parallelling €€MOS input, voltage controlled €€ultra fast free wheeling diodes €€solderable

Applications

* €€AC motor control €€AC servo and robot drives €€power supplies IXYS reserves the right to change limits, test conditions and dimensions. © 2007 IXYS All rights reserved 20070912a 1-4 MWI 100-12 A8 Diodes Symbol IF25 IF80 Conditions TC = 25°C TC = 80°C Maximum Ratings 200 A 130 A Equivalent C
