MWI100-06A8, IGBT Modules

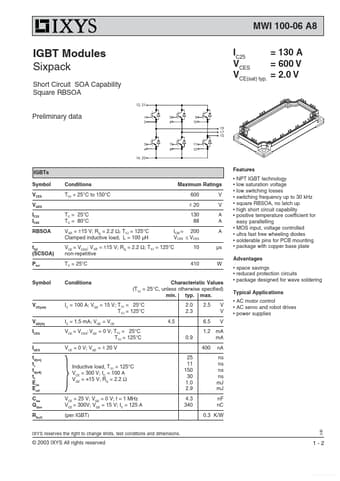

MWI 100-06 A8 IGBT Modules Sixpack Short Circuit SOA Capability Square RBSOA 13, 21 IC25 = 130 A = 600 V VCES VCE(sat) typ.= 2.0 V Preliminary dat.

datasheet Preview Page 1 from Datasheet4u.com

MWI100-06A8-IXYS.pdf

MWI100-06A8 Datasheet Preview — Preview of MWI100-06A8 PDF

Datasheet Details

Part number:

MWI100-06A8

Manufacturer:

IXYS

File Size:

104.77 KB

Description:

IGBT Modules

Features

* VCE = VCES; VGE = ±15 V; RG = 2.2 Ω; TVJ = 125°C non-repetitive TC = 25°C NPT IGBT technology low saturation voltage low switching losses switching frequency up to 30 kHz square RBSOA, no latch up high short circuit capability posi

Applications

* VCE(sat) VGE(th) ICES IGES td(on) tr td(off) tf Eon Eoff Cies QGon RthJC IC = 100 A; VGE = 15 V; TVJ = 25°C TVJ = 125°C IC = 1.5 mA; VGE = VCE VCE = VCES; VGE = 0 V; TVJ = 25°C TVJ = 125°C VCE = 0 V; VGE = ± 20 V AC motor control AC servo and robot drives power supplies Inducti
