MWI100-12E8, IGBT Modules

MWI 100-12 E8 MKI 100-12 E8 IGBT Modules Sixpack, H Bridge Short Circuit SOA Capability Square RBSOA 13, 21 1 2 5 6 9 10 19 17 15 13, 21 1 2 9 10 19 .

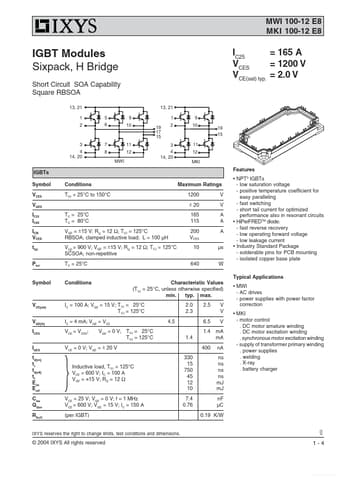

datasheet Preview Page 1 from Datasheet4u.com

MWI100-12E8-IXYS.pdf

MWI100-12E8 Datasheet Preview — Preview of MWI100-12E8 PDF

Datasheet Details

Part number:

MWI100-12E8

Manufacturer:

IXYS

File Size:

162.66 KB

Description:

IGBT Modules

Features

* NPT3 IGBTs - low saturation voltage - positive temperature coefficient for easy paralleling - fast switching - short tail current for optimized performance also in resonant circuits
* HiPerFREDTM diode: - fast reverse recovery - low operating forward voltage - low leakage current

Applications

* Symbol Conditions Characteristic Values (TVJ = 25°C, unless otherwise specified) min. typ. max. 2.0 2.3 4.5 1.4 400 330 15 750 45 12 10 7.4 0.76 2.5 6.5 1.4 V V V mA mA nA ns ns ns ns mJ mJ nF µC 0.19 K/W 451 VCE(sat) VGE(th) ICES IGES td(on) tr td(off) tf Eon Eoff Cies QGon RthJC IC = 100 A; VGE
