MWI25-12A7T, MWI25-12A7 Datasheet - IXYS

MWI25-12A7T, MWI25-12A7, IGBT Module

IGBT Module Sixpack Short Circuit SOA Capability Square RBSOA Part name (Marking on product) MWI25-12A7 MWI25-12A7T 13 T version T 1 2 5 6 T 3 4.

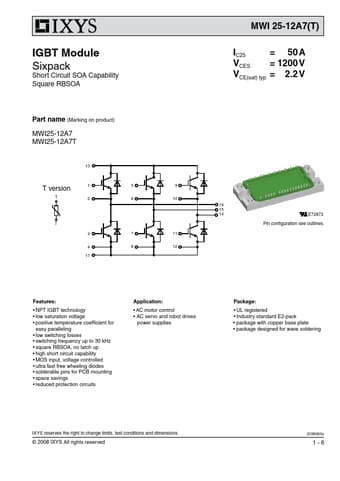

datasheet Preview Page 1 from Datasheet4u.com

MWI25-12A7-IXYS.pdf

MWI25-12A7T Datasheet Preview — This datasheet PDF includes multiple part numbers: MWI25-12A7T, MWI25-12A7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MWI25-12A7T, MWI25-12A7

Manufacturer:

IXYS

File Size:

183.43 KB

Description:

IGBT Module

Note:

This datasheet PDF includes multiple part numbers: MWI25-12A7T, MWI25-12A7.
Please refer to the document for exact specifications by model.

Features

* NPT IGBT technology
* low saturation voltage
* positive temperature coefficient for easy paralleling
* low switching losses
* switching frequency up to 30 kHz
* square RBSOA, no latch up
* high short circuit capability
* MOS inpu
