* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

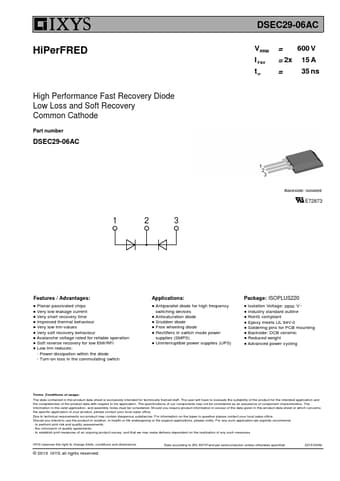

DSEC29-06AC Datasheet (301.90 KB)
DSEC29-06AC
IXYS
301.90 KB
High performance fast recovery diode.
HiPerFRED
High Performance Fast Recovery Diode Low Loss and Soft Recovery Common Cathode
Part number
DSEC29-06AC
1
2
3
DSEC29-06AC
VRRM I FAV t r.
