* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
* Lo

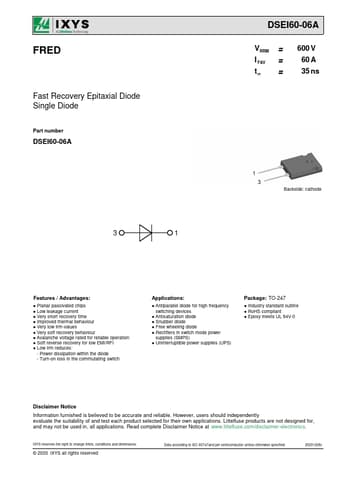

DSEI60-06A Datasheet (305.13 KB)
DSEI60-06A
IXYS
305.13 KB
Fast recovery epitaxial diode.
FRED
Fast Recovery Epitaxial Diode Single Diode
Part number
DSEI60-06A
3
1
DSEI60-06A
VRRM =
I FAV
=
t rr
=
600 V 60 A 35 ns
Backside: catho.
