DSEP30-03A - Epitaxial Diode

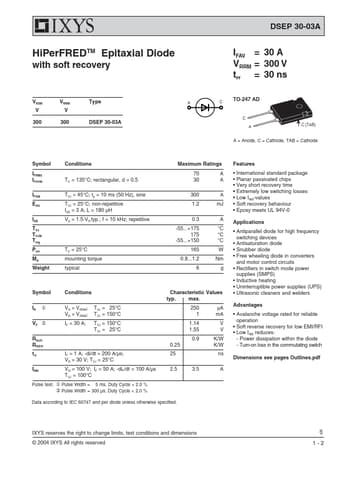

DSEP 30-03A HiPerFREDTM Epitaxial Diode with soft recovery IFAV = 30 A VRRM = 300 V trr = 30 ns A C VRSM V 300 VRRM V 300 Type TO-247 AD DSEP 30-03A C A C (TAB) A = Anode, C = Cathode, TAB = Cathode Symbol IFRMS IFAVM IFSM EAS IAR TVJ TVJM Tstg Ptot Md Weight Conditions TC = 135°C; rectangular, d = 0.5 TVJ = 45°C; tp = 10 ms (50 Hz), sine TVJ = 25°C; non-repetitive IAS = 3 A; L = 180 µH VA = 1.5 VR typ.; f = 10 kHz; repetitive Maximum Ratings 70 30 300 1.2 0.3 -55+175 175 -55+150
DSEP30-03A Features
* International standard package
* Planar passivated chips
* Very short recovery time
* Extremely low switching losses
* Low IRM-values
* Soft recovery behaviour
* Epoxy meets UL 94V-0 Applications
* Antiparallel diode for high frequenc
