DSEP30-12B

High Performance Fast Recovery Diode

DSEP30-12B Features

* / Advantages:

* Planar passivated chips

* Very low leakage current

* Very short recovery time

* Improved thermal behaviour

* Very low Irm-values

* Very soft recovery behaviour

* Avalanche voltage rated for reliable operation

* Soft reverse recovery for low EMI/RFI

DSEP30-12B Datasheet (138.95 KB)

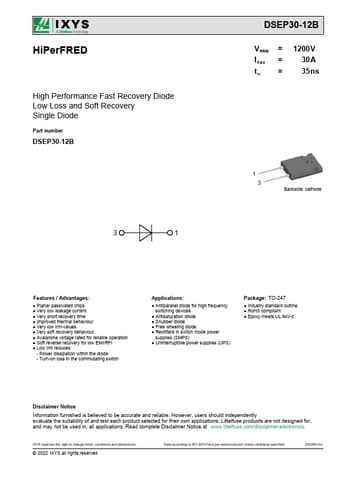

Preview of DSEP30-12B PDF

Datasheet Details

Part number:

DSEP30-12B

Manufacturer:

IXYS

File Size:

138.95 KB

Description:

High performance fast recovery diode.
HiPerFRED High Performance Fast Recovery Diode Low Loss and Soft Recovery Single Diode Part number DSEP30-12B 3 1 DSEP30-12B VRRM = I FAV = t r.
