* / Advantages:
* Planar passivated chips
* Very low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI

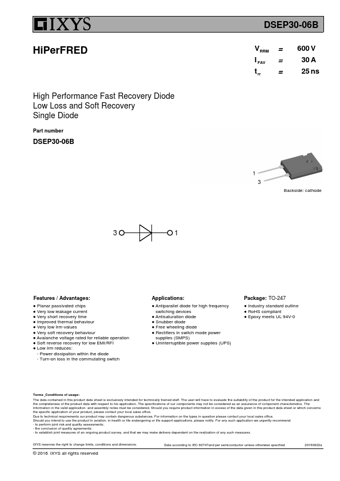

DSEP30-06B Datasheet (297.94 KB)
DSEP30-06B
IXYS
297.94 KB
High performance fast recovery diode.
HiPerFRED
High Performance Fast Recovery Diode Low Loss and Soft Recovery Single Diode
Part number
DSEP30-06B
31
DSEP30-06B
VRRM I FAV t rr
= = =
.
